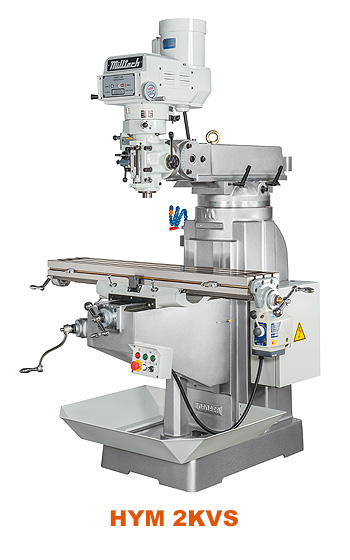

2KVA
VARIABLE SPEED HEAD
2KVS
VARIABLE SPEED HEAD
2VA
DESIGNED FOR MORE
RIGIDITY AND STABILITY


Features:

HIGH QUALITY PERFORMANCE:

  • Major castings are manufactured from high quality Meehanite cast iron, completely annealed and stress relieved for deformation free performance.
  • The overarm is ruggedly constructed and exhibits exceptional stability when performing heavy cutting.
  • Square slideways on Y, Z-axis (for 4V series) way surfaces are hardened and precision ground assuring maximum rigidity and maintaining high accuracy in heavy cutting.
  • Table slideways, and top and bottom surfaces are tempered and hardened.
  • T-slots on table are also precision ground to upgrade accuracy on reference planes.
  • X, Y-axis slideways are coated with Turcite-B for smooth traverse and wear-resistance.
  • X, Y-axis feed screws are hard chrome plated for increasing wear-resistance capability and service life.
  • The major cast iron of FC-30 and FCD-45 is high tensil material (MEEHANITE), it is annealed for stress releaving, featuring anti-wearness and deformation free.
  • Automatic lubrication system provides lubrication to X, Y, Z-axis slideways and feed screws. Lubrication frequency and oil flow are adjustable. (Optional)
  • Power feed units for X, Y-axis are available upon request (optional).

Standard Accessories:
  • Tool and toolbox
  • One shot lubrication
  • Chip cover front and rear
  • X, Y Turcite B


Optional Accessories:
  • X, Y power feed unit
  • Coolant equip with tray
  • Electric with control box
  • Table elevating motor
  • Spindle nose N.S.T.40
    with quill DIA. 105 mm
  • Halogen work light

Specifications:
Table

HYM 2KVA / VS / IV

Table size 1067 x 230 or 1245 x 230 mm
T-slots (W x No. x Dist.) 16 x 3 x 63 mm
Travel
Longitudinal travel (X-axis) 680 mm
Cross travel (Y-axis) 355 mm
Knee travel 406 mm
Ram travel 460 mm
Spindle
Spindle speeds 8 steps 80-2720 PRM (60-4200 / 0-4200)
Spindle taper NST 30 or R8
Quill travel 127 mm
Quill feedrate 0.04 / 0.08 / 0.15 mm/rev
Spindle motor 3HP
Quill diameter Ø86
Head tilt 45° (Head swivel 90°)
Spindle nose to top of table 80-466 mm
Spindle center to column 140-450 mm
Electric
Coolant pump 1/8HP -2P
Size and weight
Machine dimensions 1680 x 1430 x 2200 mm
Packing dimensions 1600 x 1450 x 1900 mm
Net weight 950 kgs
Design and specification are subject to change without prior notice.
